VOE20524936 Pressure Sensor 0281002576 EC210B Air Pressure Sensor EC240B
| Description | EC210B Pressure Sensor, EC240B Air Pressure Sensor, Volvo Air Pressure Sensor |
| Application | Volvo EC210B Excavator |
| Model | EC210B, EC240B, EC290B, EC360B |
| Part No. | VOE20524936, 20524936, 0281002743, 0281002576 |
| Quality | OEM |
| Weight | 0.2-0.3kgs |
| Packing | Pack into carton box |
| MOQ | 1PC |
| Lead time | About 1-3 working days |
| Payment | TT, Western union, Paypal, Paysend, RMB |
| Warranty | 6 Months |
| Shipping Port | Huangpu Old Port, Shenzhen Yantian,Guangzhou |
VOE20524936 Pressure sensor Volvo.Heavy parts A25D, A25E, A30D, A30E, A40E, A40E FS, ABG7820/ABG7820B,
ABG8820/ABG8820B, ABG9820, DD120C, DD140B, DD140C, EC135B, EC140B, EC140C, EC140E, EC160B, EC160C,
EC160E, EC170D, EC180B, EC180C, EC180E, EC200B EC200D EC210B EC210C EC210D EC220D EC220E EC235C
EC235D EC240B EC240C EC250D EC250E EC290B EC290C EC300D EC300E EC350D EC700B

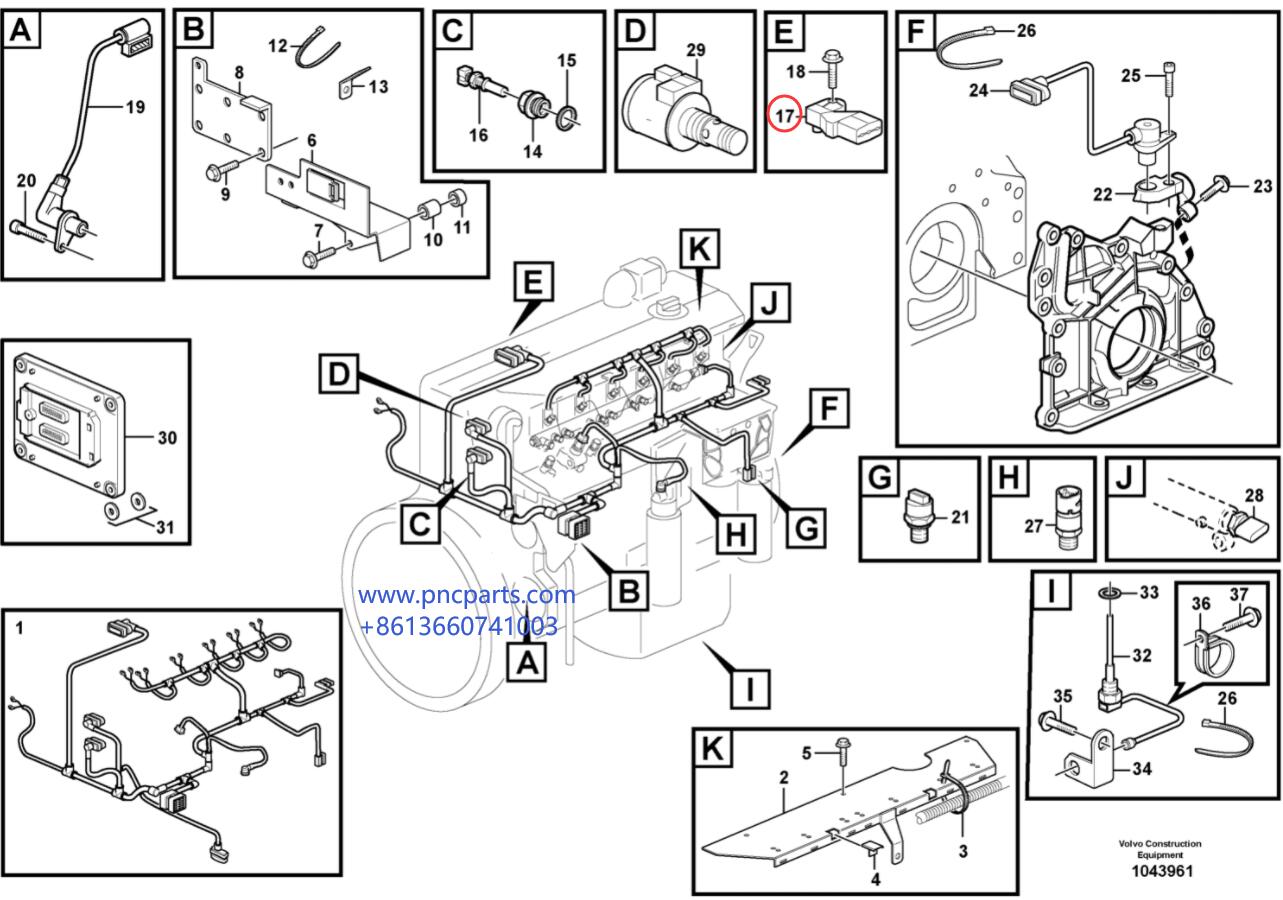

Parts on group EC210B Cable harness, engine:
| 1. | VOE20914988 | [1] | Wiring Harness | |
| | | | CONNECTED TO: | |
| | | | Connector | |
| | | | Engine speed,camshaft | SE2703 |
| | | | Solenoid valve | |
| | | | Coolant temperature | SE2606 |
| | | | Charge-air temperature | SE2507, SE2508 |
| | | | Fuel Regulator | |
| | | | Fuel Nozzle | MA2301 - MA2306 |
| | | | Fuel filter | SE2301 |
| | | | Oil pressure sensor | SE2203 |
| | | | Engine speed | SE2701 |
| | | | Pressure Sensor | SE2309 |
| 2. | VOE20915014 | [1] | Cover Plate | |
| 3. | VOE20460347 | [8] | Clamping band | |
| 4. | VOE20711847 | [2] | Cable Clamp | |
| 5. | VOE20851223 | [3] | Hexagon screw | |
| 6. | VOE21377084 | [1] | Bracket | |
| 7. | VOE996812 | [2] | Flange screw | |
| 8. | VOE20951647 | [1] | Retaining plate | |
| 9. | VOE20405672 | [4] | Screw | |
| 10. | VOE20575921 | [2] | Sleeve | |
| 11. | VOE20450730 | [2] | Bushing | |
| 12. | VOE4881440 | [REQ] | Cable tie | |
| 13. | VOE20450997 | [1] | Bracket | |
| 14. | VOE20450683 | [1] | Adapter | |
| 15. | VOE13947628 | [1] | Plane gasket | |
| 16. | VOE21531072 | [1] | Temperature sensor | SE2606 |
| 17. | VOE20524936 | [1] | Pressure sensor | SE2507, SE2508 |
| 18. | VOE20450728 | [1] | Bolt | |
| 19. | VOE22435058 | [1] | Sensor | SE2703 |
| 20. | VOE20450694 | [1] | Screw | |
| 21. | VOE21291011 | [1] | Pressure sensor | SE2203 |
| 22. | VOE21278213 | [1] | Bracket | |
| 23. | VOE20739886 | [2] | Screw | |
| 24. | VOE20450707 | [1] | Tachometer | SE2701 |
| 25. | VOE20450694 | [1] | Screw | |
| 26. | VOE4881440 | [REQ] | Cable tie | |
| 27. | | [1] | Pressure Sensor | SE2301 |
| 28. | | [1] | Pressure Sensor | SE2309 |
| 29. | | [1] | Solenoid valve | |
| 30. | VOE60100000 | [1] | Electronic unit | E-ECU |
| 31. | VOE21071773 | [4] | Rubber element | |
| 32. | VOE22383381 | [1] | Level sensor | SE2202, SE2205 |
| 33. | VOE20828295 | [1] | Sealing ring | |
| 34. | VOE20852241 | [1] | Bracket | |
| 35. | VOE20405792 | [1] | Screw | |
| 36. | VOE20450867 | [2] | Clamp | |
| 37. | VOE20405792 | [2] | Screw | |
